R6160 Diesel Engine Assembly Marine Whole Original Chinese TS16949 CertifiCatere

Brand Name : JINGTE

Model Number : R6160

CertifiCaterion : ISO/TS16949

Place of Origin : CHINA

MOQ : 1 set

Price : competitive price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 piece per month

Delivery Time : 15day

Packaging Details : neutral packing with wooden box, or as requested

Stroke : 4 in line

Type : marine diesel engine

cooling : water cooling

AppliCaterion : Ship

Usage : power supply

Process : setting Each parts

Delivery : 7 days

Contact Now

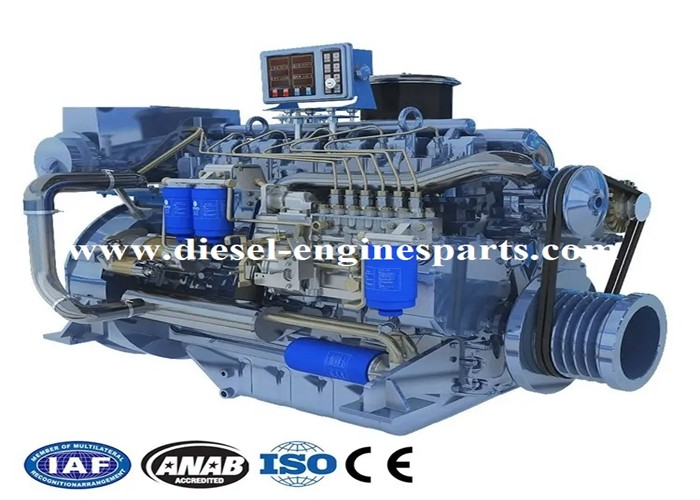

Whole Original Chinese Engine R6160 Marine Diesel Engine Assembly



1. Engine assembly: MARINE engine assembly



2. Material of Marine R6160 engine assembly: Steel for Ship engine



3. Adjustment: Setting and adjustment of engine



4. Applicable Area:  Marine engine, boat engine etc.

Name Chinese R6160  R6170 WP4 WP10 WP12 WP13 WD615 WD618 Engine
Packing Wooden packing
Delivery 1-3 Working Days
Fuel type Diesel
AppliCatererion Chinese Marine Engine



5. Features of Marine R6160 engine assembly:

Item Unit engine type
R6160
ZC223-5		 R6160
ZC250-5		 R6160
ZC275-5		 R6160
ZC300-5		 R6160
ZC326-5
intake mode   turbocharged turbocharged and intercooled
number of cylinders   6
bore X stroke   160×225
displacement L 27.14
compression ratio   14.5:1
rated power KW 164 184 202 220 240
rated speed r/min 850 850 850 850 850
min. fuel oil consumption g/(KW.h) 205
fuel consumption @ rated power g/(KW.h) ≤218 ≤218 ≤213 ≤213 ≤210
lub oil and fuel consumption ratio g/(KW.h) ≤1.36
cooling mode   sea and fresh water duel-circulation cooling system
start mode   electric start/air/both
net weight kg 3400
rotation direction of crankshaft (seen from the free end)   clockwise
dimension length mm 2644
width mm 1134
height mm 1768
Item Unit engine type
R6160
ZC223-1		 R6160
ZC250-1		 R6160
ZC275-1		 R6160
ZC300-1		 R6160
ZC350-1
intake mode   turbocharged turbocharged and intercooled
number of cylinders   6
bore X stroke   160×225
displacement L 27.14
compression ratio   14.5:1
rated power KW 164 184 202 220 255
rated speed r/min 1000 1000 1000 1000 1000
min. fuel oil consumption g/(KW.h) 205
fuel consumption @ rated power g/(KW.h) ≤216 ≤216 ≤216 ≤216 ≤216
lub oil and fuel consumption ratio g/(KW.h) ≤1.36
cooling mode   sea and fresh water duel-circulation cooling system
start mode   electric start/air
net weight kg 3400
rotation direction of crankshaft (seen from the free end)   counter clockwise
dimension length mm 2644
width mm 1134
height mm 1768
Item Unit engine type
R6160
ZC279-1		 R6160
ZC408-1		 R6160
ZC450-1		 R6160
ZC490-2
intake mode   turbocharged and intercooled
number of cylinders   6
bore X stroke   160×225
displacement L 27.14
compression ratio   14.5:1
rated power KW 205 300 330 360
rated speed r/min 1000 1000 1000 1200
min. fuel oil consumption g/(KW.h) 205
fuel consumption @ rated power g/(KW.h) ≤210 ≤210 ≤210
lub oil and fuel consumption ratio g/(KW.h) ≤1.36
cooling mode   sea and fresh water duel-circulation cooling system
start mode   electric start/air
net weight kg 3400
rotation direction of crankshaft (seen from the free end)   counter clockwise
dimension length mm 2644
width mm 1134
height mm 1768
Type 4 stroke,Dual-circulate water cool,inline,direct injection Cylinder No. 6
Broke/stroke 160×225 mm Displacement 27.14L
Mini.fuel consumption ratio 205 g/kW·h Lub-oil consumption ratio 1.0 g/kW·h
Starting method Air/electrical start Idle speed 500±50 r/min
Fire sequence 1-5-3-6-2-4 right engine/ 1-4-2-6-3-5 left engine Smoke sensity ≤1.0 RB
Noise ≤114 dB(A) Emission IMO TIER Ⅱ
Crankshaft rotating direction(face to free end) Clockwise/unticlockwise Overhual period 12000 h



6. Package: Wooden package+pallet



7. Deliver time: Normally in stock

   Port: Tianjin, CN

R6160 Diesel Engine Assembly Marine Whole Original Chinese TS16949 CertifiCatereR6160 Diesel Engine Assembly Marine Whole Original Chinese TS16949 CertifiCatere
